Types of Process Maps (And When To Use Each)

Ask five people in the same department to describe how a routine request moves through their team and you will usually get five different answers. Everyone is confident, everyone is partly right, and nobody agrees on where the work actually waits. That disagreement is not a people problem. It is what happens when a process exists only in habit.

A process map fixes that by putting the work on paper. The complication is that process map is not one thing. It is a family of diagrams, and each member of that family answers a different question. A map that is perfect for a board briefing is useless for finding a bottleneck, and a map that exposes every handoff will bury an executive in detail.

This article defines what a process map is, walks through nine useful types, and explains when each one earns its keep. The decision guide lets you compare them at a glance before the article closes with common selection mistakes and a short method for building your first map.

What Is a Process Map?

A process map is a visual representation of the steps, decisions, inputs, and outputs that make up a business process, drawn in the order the work happens. It shows who does what, in what sequence, and where the work moves from one person or system to another.

The purpose is shared understanding. A written procedure describes a process in sentences that people read once. A map shows the same process as a shape, and a shape is something a team can argue about productively. Gaps, loops, and redundant approvals become visible in a way that prose hides. For a fuller treatment of the discipline behind these diagrams, see our guide to business process mapping.

What Every Process Map Contains

• Activities: the individual steps performed, usually drawn as rectangles.
• Decisions: the points where the flow branches, usually drawn as diamonds.
• Sequence: arrows showing the direction the work travels.
• Boundaries: a defined start event and end event, so the scope is unambiguous.
• Owners: the role accountable for each step, either labeled or implied by a lane.

Everything beyond those five elements is what separates one type of map from another. Some types add timing data. Some add systems. Some add nothing at all, which is exactly why they work for the audience they serve.

How To Choose the Right Type of Process Map

Type selection is driven by the question you are trying to answer, not by the drawing tool you happen to own. Before choosing a format, settle four things: who reads the map, what decision it supports, and how much of the process is in scope.

• Audience: an executive wants five boxes; the person doing the work wants forty.
• Purpose: onboarding, compliance evidence, automation design, and waste reduction all pull toward different formats.
• Scope: a single task, an end-to-end workflow, or a whole value chain.
• Data appetite: whether anyone will actually collect the cycle times a data-heavy map demands.

If you are unsure, start simple. A basic flowchart that people read beats a value stream map that nobody finishes. Our discussion of the different levels of process mapping covers how detail should escalate as the work matures.

9 Types of Process Maps and When To Use Each

The nine formats below cover a practical range of business mapping work. They begin with broad orientation and move toward specialized analysis and formal modeling, but there is no required adoption order.

1. High-Level Process Map

A high-level map, sometimes called a top-down or block diagram, reduces a process to a small number of major stages and usually omits most decisions and exceptions. It is the one-page answer to “what happens here?”

Use it when you are orienting a new employee, briefing an executive, or setting the boundaries of a mapping project before detailed work begins. Its weakness is that it cannot support analysis. There is nothing in a high-level map to fix, because everything that goes wrong lives in the detail it deliberately omits.

• Best for: orientation, scoping, executive communication.
• Avoid when: you need to diagnose a failure or design a change.
• Keep it useful: include only enough stages to orient the intended reader.

2. Detailed Process Map

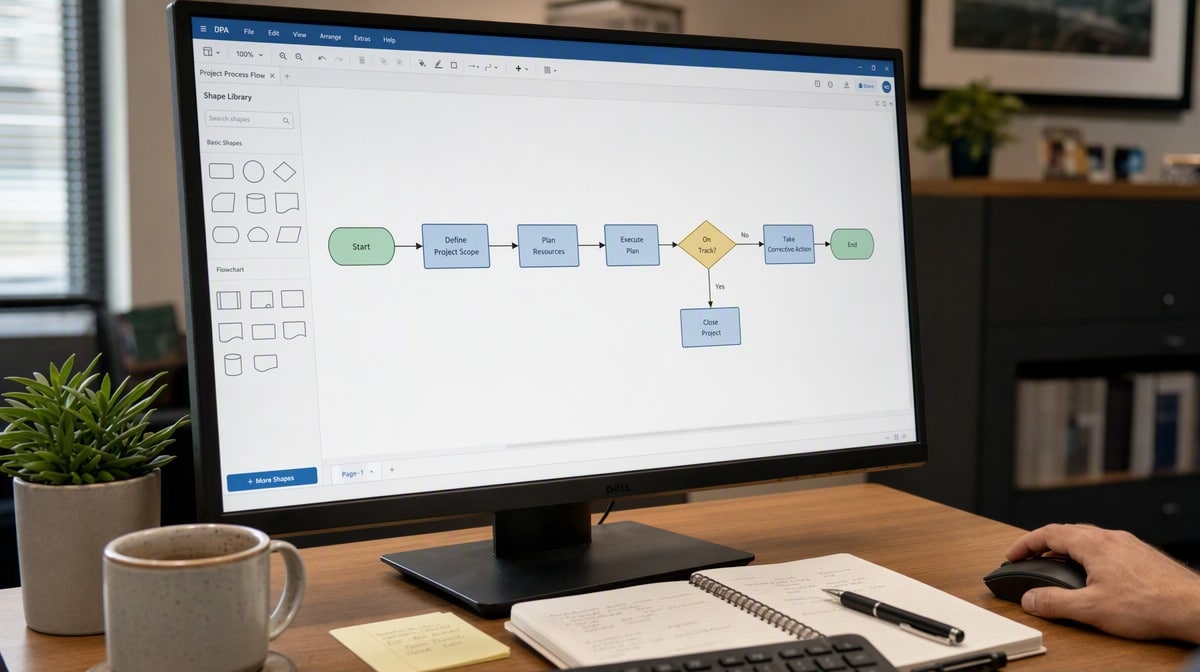

The detailed process map is the standard business flowchart most people picture: activities, decision diamonds, branches, and exception paths drawn with a consistent symbol set. Even a routine process can expand into many shapes when the team records the work as it actually happens.

This is the workhorse format for writing procedures, training staff, and finding the loops where work doubles back. It is also where teams first discover that the official process and the real process diverged years ago. The trade-off is maintenance, since a detailed map goes stale the moment the process changes and nobody updates the diagram.

• Best for: procedure documentation, training, exception handling.
• Avoid when: the audience is senior and time-poor.
• Keep it useful: record the exceptions people need to perform or improve the work.

3. Swimlane Diagram

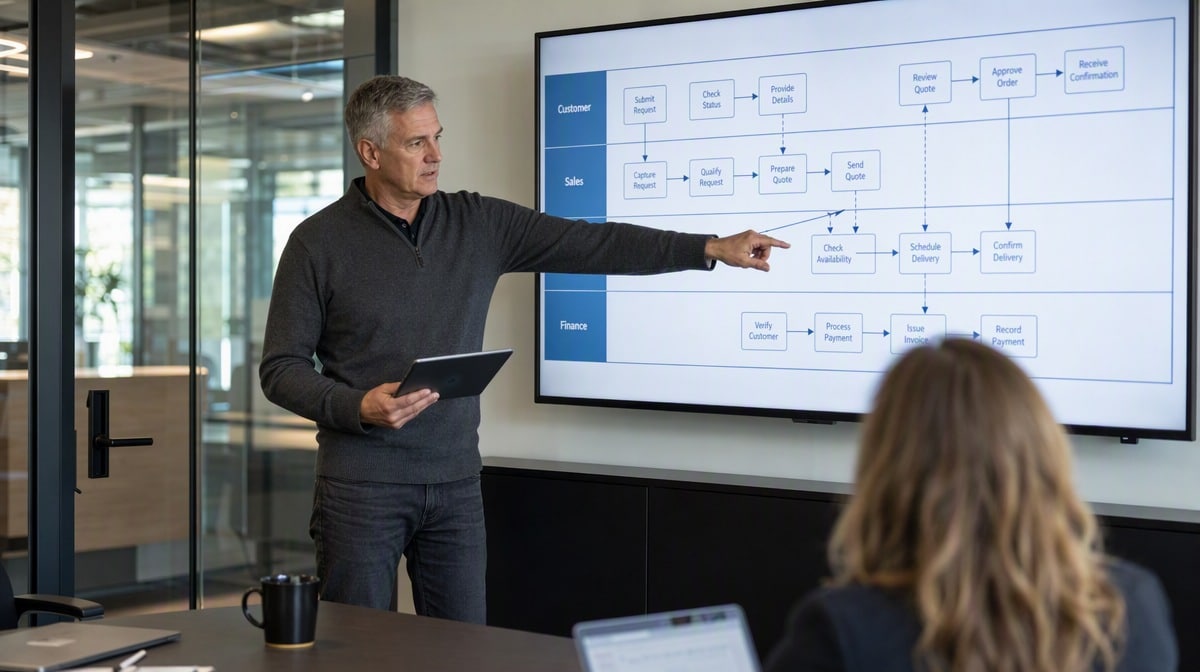

A swimlane diagram, also called a cross-functional or deployment flowchart, splits the map into horizontal or vertical lanes, one per role, department, or system. Each step sits in the lane of whoever performs it, and every arrow that crosses a lane boundary is a handoff.

Swimlanes are especially useful when a process involves more than one team because every crossing highlights a handoff worth checking for delay, rework, or unclear ownership. If a purchase requisition crosses between requester, manager, finance, and purchasing several times, the diagram makes that obvious in a way no narrative can. Our guide to swimlane process maps develops this format in more detail.

• Best for: cross-departmental processes, accountability disputes, handoff reduction.
• Avoid when: the whole process sits inside one role.
• Watch for: lane sprawl. If readers cannot follow the crossings, narrow the scope or split the map.

4. SIPOC Diagram

SIPOC stands for Suppliers, Inputs, Process, Outputs, and Customers. It is a high-level table that frames a process before anyone maps it in sequence. The American Society for Quality SIPOC guide recommends summarizing the process in five to seven core activities before developing the detailed flowchart.

Six Sigma teams use SIPOC early in an improvement project to agree the process boundaries and identify who supplies the inputs and who receives the outputs. It prevents the common failure of mapping a process without knowing which customer it serves.

• Best for: project scoping, improvement kickoff, supplier and customer clarity.
• Avoid when: you already have agreement on scope and need flow detail.
• Keep it useful: stop at high-level scope; use a flowchart for step detail.

5. Value Stream Map

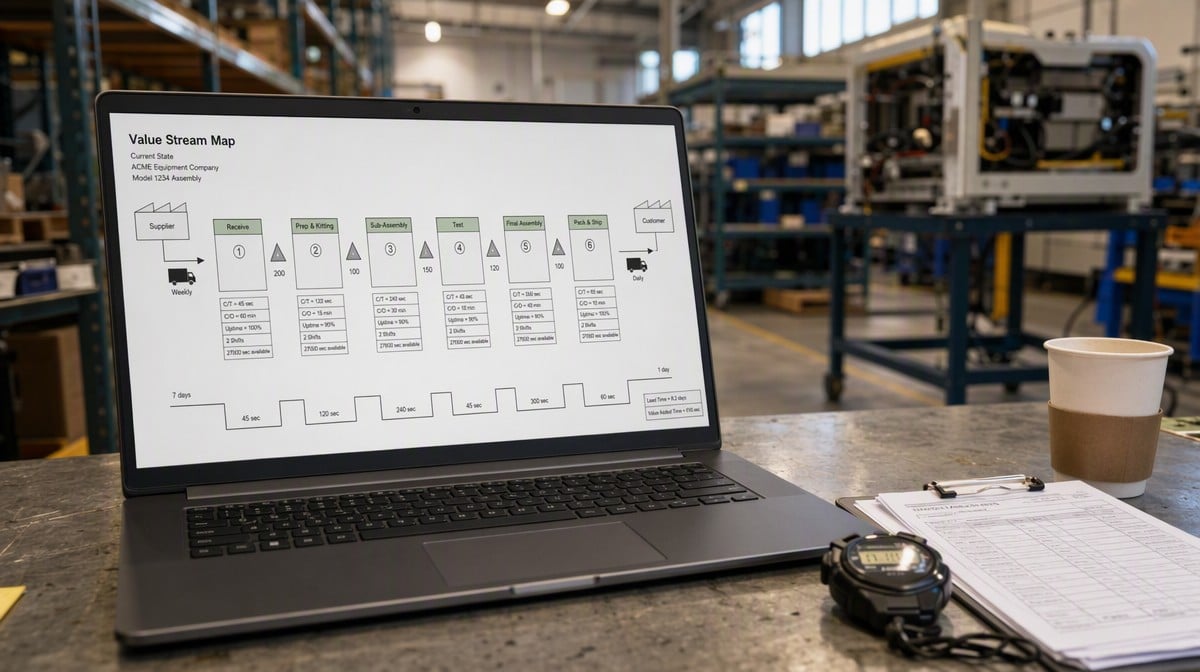

A value stream map documents the entire flow of a product or service from customer request to delivery, and annotates each step with operational data: cycle time, wait time, inventory, defect rate, and the number of people involved. A timeline along the bottom separates value-adding time from everything else.

It is a diagnostic instrument of lean practice. The National Institute of Standards and Technology guide to value stream mapping describes using a current-state map to identify waste and opportunities to reduce lead time, then defining a future state and implementing improvements. After building the map, this guide to value stream map analysis explains how to turn observations into action.

• Best for: lead-time reduction, waste identification, lean programs.
• Avoid when: nobody is willing to gather the timing data it requires.
• Keep it useful: collect enough timing and flow data to distinguish observation from assumption.

6. Value-Added Flow Chart

A value-added flow chart is the lighter relative of the value stream map. It lists the process steps in sequence, records the elapsed time of each, and classifies every step as value-adding, business-necessary, or waste.

Because it can begin with a step list and observed elapsed times, it suits administrative processes where a full value stream map would be excessive. An invoice approval, for example, may reveal several delays or checks that do not change the outcome for the customer. The classification gives the team a concrete basis for deciding what to remove, simplify, or retain as a necessary control.

• Best for: office and back-office processes, quick waste audits.
• Avoid when: the process spans multiple sites or complex material flow.
• Keep it useful: label measured time separately from estimates and assumptions.

7. Process Flow Diagram

The process flow diagram, or PFD, is an engineering format rather than another name for the detailed business flowchart above. It maps the physical flow of material or product through equipment, showing major equipment, lines, transformation points, and flows. ISO 10628-1 specifies the classification, content, representation, and drafting rules for diagrams used in chemical and petrochemical industry processes.

Use it when the subject is physical material moving through equipment. It suits production and process-industry analysis, while an approval-driven office workflow is usually clearer as a detailed or swimlane map.

• Best for: production and plant operations, equipment-centric processes.
• Avoid when: the process is administrative or decision-driven.
• Related discipline: often paired with piping and instrumentation diagrams for detailed engineering.

8. Data Flow Diagram

A data flow diagram shows how information moves between processes, data stores, and external entities. It deliberately ignores sequence and timing, answering “where does this data come from and where does it end up?” rather than “what happens first?”

Data flow diagrams matter when a process is being automated, when systems are being integrated, or when a privacy or records-retention question requires knowing where personal data lands. The UK Health Security Agency data-flow guidance describes the core elements as external entities, processes, data stores, and flows, and recommends starting with a context diagram before adding detail. Teams evaluating types of process automation may benefit from one before scoping a build, and our overview of business process automation covers what happens after the data picture is clear.

• Best for: system integration, automation design, data governance.
• Avoid when: the audience needs to know the order of human steps.
• Common levels: a context diagram first, then decomposition into level 1 and level 2.

9. BPMN Diagram

Business Process Model and Notation is a formal standard maintained by the Object Management Group. The OMG BPMN 2.0.2 specification defines a precise vocabulary covering events, gateways, pools, message flows, and subprocesses. A sufficiently detailed BPMN model can represent an executable process when it is used with a compatible workflow engine, but not every BPMN drawing is executable.

BPMN is the right choice when the map will drive a workflow engine, when several teams need to read a diagram identically, or when the process is complex enough that informal notation becomes ambiguous. The cost is a learning curve, and a BPMN model shown to an untrained audience communicates less than a plain flowchart would.

• Best for: workflow automation, complex processes, notation consistency at scale.
• Avoid when: the readers are frontline staff with no notation training.
• Prerequisite: at least one person on the team who knows the standard properly.

Which Process Map Type Fits Which Job?

The decision guide below turns the nine formats into a practical first choice. Start with the question in the left column, then confirm the recommendation against the detailed sections above.

A team may maintain more than one format for the same process because each supports a different decision. The formats are not competitors; they are lenses on the same work.

Common Mistakes When Choosing a Map Type

Mapping the Process You Wish You Had

Teams routinely draw the approved procedure instead of the observed reality. The resulting map is tidy, agreeable, and useless for improvement. Map the current state from observation and interviews first, then draw the future state as a separate diagram.

Choosing Detail Before Choosing Audience

A highly detailed flowchart can overwhelm a reader who needs only orientation. Decide who reads the map before deciding how granular it should be, and accept that one process may need two diagrams at two altitudes.

Treating the Map as the Deliverable

A diagram that never becomes a procedure, a training module, or a system configuration is decoration. The map earns its cost when the documented process changes what people actually do. This is the connection our discussion of the process approach to business process management develops in more depth.

Ignoring Notation Discipline

Mixed symbol conventions across a document set make maps difficult for anyone but the author to interpret. Pick a symbol standard, write it down, and apply it consistently. ISO guidance on documented information lists process maps and flowcharts as documents that may add value to a quality management system, while making clear that process mapping itself is not an ISO 9001 requirement. If a map is part of the system, control it like other documented information.

Never Revisiting the Map

A process map can become obsolete as roles, systems, and controls change. Assign an owner and a review trigger when the map is published so it is checked after material process changes and on a sensible periodic cadence.

How To Build Your First Process Map

A first mapping effort should be small enough to finish. Choose one process with a clear start, a clear end, and a person who complains about it regularly.

• Define the boundaries. Name the trigger event and the end state before drawing anything.
• Pick the format. Use the selection criteria above; when in doubt, start with a swimlane diagram.
• Gather the steps from the people who do the work. Interviews and observation, not the procedure binder.
• Draft the flow. Sticky notes on a wall first, software second. Rearranging paper is cheaper than redrawing shapes.
• Validate with the team. Walk the map step by step with the people who perform it and correct it live.
• Publish it into a system. Attach the map to the procedure it documents so the two stay together.
• Set a review trigger. Name an owner and revisit the map after a material process change and on a sensible periodic cadence.

The American Society for Quality flowchart procedure follows the same practical pattern: define boundaries, gather the people who know the process, record the current steps, connect them in sequence, and walk through the result with the team. For more implementation detail, review these process mapping best practices.

Putting the Right Map To Work

Choosing a process map type determines whether the resulting diagram supports the decision in front of you. High-level maps explain, detailed maps document, swimlanes expose handoffs, SIPOC scopes, value stream maps measure, and sufficiently detailed BPMN models can drive compatible workflow engines. Match the format to the question and the map becomes useful.

Teams often under-map at the start and over-map later, drowning a simple process in notation nobody asked for. Start with the simplest diagram that answers the question in front of you, publish it where the work happens, and add detail only when a specific decision requires it.

Frequently Asked Questions

What Are the Main Types of Process Maps?

The main types are the high-level process map, the detailed process map, the swimlane or cross-functional diagram, the SIPOC diagram, the value stream map, the value-added flow chart, the process flow diagram, the data flow diagram, and the BPMN diagram. Each answers a different question, from executive orientation to formal workflow modeling and compatible automation.

Which Type of Process Map Is Best for Beginners?

A detailed process map or a swimlane diagram is a practical starting point for many teams. Both use familiar flowchart shapes and can expose the handoffs, decisions, and exception paths that need attention.

What Is the Difference Between a Process Map and a Value Stream Map?

A process map shows the sequence of steps and decisions in a process, while a value stream map adds operational data such as cycle time, wait time, and inventory across the whole flow from request to delivery. The value stream map is a measurement instrument; the process map is a description.

When Should You Use a Swimlane Diagram?

Use a swimlane diagram when a process crosses roles, departments, or systems. Lanes make every handoff visible, helping the team check where delay, rework, or unclear accountability may occur.

How Detailed Should a Process Map Be?

The level of detail should be set by the audience and the decision the map supports. An executive briefing needs only the major stages, while a map used to write a procedure or configure a workflow may need each relevant step, decision, handoff, and exception branch.
