What Are Swim Lane Process Maps?

Asking, “how are we going to get from where we are to where we want to be?” is a question of implementation. What are the concrete steps we have to take to get there? Who is going to do what, and when are they going to do it?

Using Swim Lane process maps is one way to answer those questions. A swim lane map keeps the process visible, but it also keeps responsibility visible: roles, handoffs, documents, decisions, timing, and customer involvement all sit in the same picture.

What Are Swim Lane Process Maps?

Swim Lane process maps are process maps organized by role. Each lane represents a person, team, department, customer group, supplier, or subprocess, and the process steps are placed inside the lane owned by that role. The Minnesota Department of Health describes swim lane maps as a way to show time, people or job functions, and tasks or processes in one view.

We like to organize Swim Lane process maps by putting the START on the left and the END on the right. It is easier to read the chart from left to right, and that orientation fits the way most teams scan a process during a meeting. Organizing Swim Lane process maps and other process maps in predictable ways, without over-stuffing your maps with information, eases communications, which is mainly why you create process maps: to communicate to others a process that you already know.

A regular process map can show the sequence of tasks. A swim lane process map adds accountability. When the map is working, a reader can point to any step and answer three practical questions: what happens here, who owns it, and what must move to the next role before the process can continue.

What’s In A Swim Lane?

A swim lane diagram organizes tasks by role. Each role in the process is highlighted in a separate lane, much like a lane in a competition swimming pool. Each role is responsible for every task, document, or decision shown in that swim lane.

The original driving example is still a useful way to see this. The chart uses three swim lanes: Passenger, Driver, and Navigator. The passenger lane appears first because the passenger is the customer in that process. The passenger mostly asks questions or makes requests. The driver accepts requests for breaks from passengers and adjusts the route based on input from the navigator. The navigator has a separate role because navigation is not the same work as driving.

That distinction matters. When Driving and Navigation appear in different lanes, the roles are clearly distinct. The map shows not only a list of tasks, but the relationship among people performing those tasks. If the route changes, the map can show who makes the request, who interprets it, who acts on it, and where the handoff could fail.

How Swim Lane Process Maps Help

Swim Lane process maps help because they make invisible coordination visible. A team may believe everyone understands the process, but the map often reveals duplicated work, missing approvals, unclear responsibility, or a handoff that depends on a hallway conversation. Those weak points are easier to discuss when they are shown as boxes and arrows instead of buried in job descriptions.

The various interactions are clearly displayed. Handoffs of control and information appear as vertical lines or arrows originating from an activity in one role and connecting to an activity in another. A decision can point to different actions, and those branches show which role takes responsibility next.

The map is not supposed to capture every detail in the business. It should capture the details that help people understand the process enough to act. If the swim lane becomes a wall of boxes, the reader stops seeing the handoffs. Keep the map focused on the roles, steps, documents, decisions, and timing that explain how the work actually moves.

Customer Involvement In Swim Lane Process Map

Swim Lane Process Maps visually communicate the involvement of each role. That includes the customer when the customer provides requirements, approvals, information, money, feedback, or other inputs that change the process. In our swim lane process map, we often show the customer on top so their role is not treated as an afterthought.

For example, in simple processes, customers may provide information at the beginning of a process in the form of requirements, and at the end when they buy the product. In more complex products, customer requirements may be injected more frequently. In the case of co-development or co-creation of products, customers may have responsibility for processes and therefore process steps would appear in their swim lanes.

ISO-registered organizations must gather requirements from customers. That requirement can be shown as a requirements document, depicted in a process map as a process step box with a wavy bottom. Customer requirements could also stand alone in a separate requirements definition process.

The important point is that customer involvement is not just a comment next to the process. If the customer triggers an action, approves a deliverable, rejects a result, or sends information that changes the next step, that action belongs in a lane. The map then shows where the organization is waiting on the customer and where the customer is waiting on the organization.

Vertical Timeline Swim Lanes

Vertical lines can be used to designate time-bands or phases of a process. This is useful when the process is not only role-based, but also phase-based. A project, audit, onboarding program, incident response, or crisis management plan may have a sequence of periods that everyone needs to recognize.

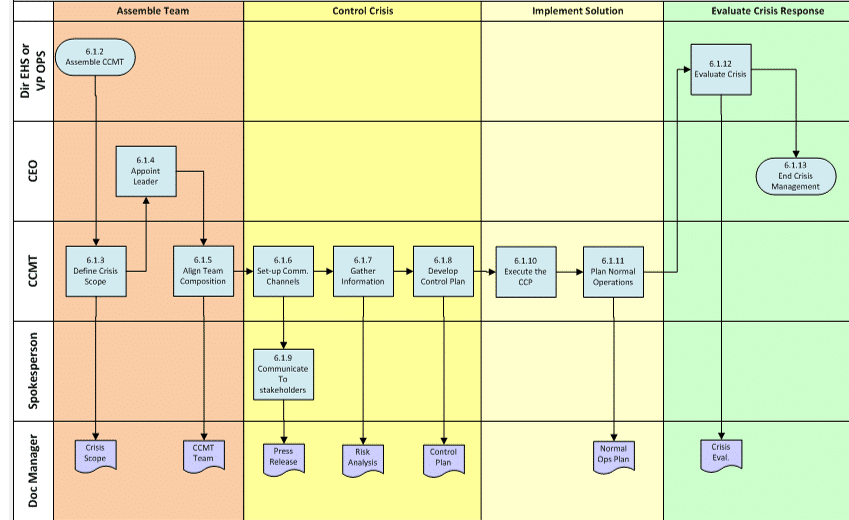

For example, in the Crisis Management Swim Lane process map there are four colored bands, one for each phase of the crisis management plan. The lanes show who does the work. The vertical phase bands show when the work occurs. Together, they let a reader see role ownership and process timing in one picture.

Vertical timeline swim lanes are especially useful when a handoff crosses both a role boundary and a time boundary. If a team completes an assessment in Phase 1 and another team starts recovery work in Phase 2, the map can show both the handoff and the phase change. That prevents a common process-map problem: a chart that shows what happens but hides when responsibility needs to move.

Swim Lane Process Maps Communicate Information

Swim Lane process maps are used to communicate a lot of information without requiring a long written explanation. Individual roles, actions, linkages, documents, decisions, handoffs, and process phases can all be communicated in one simple picture. The reader does not have to infer who owns the task, because the lane tells them.

Using swim lane process maps for managing a project helps provide a greater understanding of all the moving pieces on a project. A project manager can see who is overloaded, where approvals collect, which role owns the next action, and where customer information enters the process. The map also gives the team a practical place to discuss improvements.

On your next project, try using swim lanes to communicate who has to do what by when. Keep the START and END visible, separate roles into clear lanes, show customer involvement when it affects the work, and use vertical timeline bands when phases matter. A good swim lane process map should make the process easier to explain and harder to misunderstand.

Frequently Asked Questions

What Are Swim Lane Process Maps?

Swim lane process maps are flowcharts organized into lanes for each role, person, department, or subprocess. They show what happens, who owns each step, when handoffs occur, and where information moves between roles.

What Is Included In A Swim Lane?

A swim lane normally includes the role or group name, the process steps owned by that role, decision points, documents, handoff arrows, and a clear start-to-end sequence. Some maps also include vertical phase bands or time periods.

How Do Swim Lane Maps Show Handoffs?

Swim lane maps show handoffs with arrows or vertical lines that move from an activity in one lane to an activity in another lane. These connections make it easier to see where control, information, or responsibility changes hands.

Why Should Customers Appear In A Swim Lane Map?

Customers should appear in a swim lane map when they provide requirements, approvals, feedback, payments, or other inputs that affect the process. Showing the customer lane helps teams see where outside information enters the workflow.

When Should You Use Vertical Timeline Swim Lanes?

Use vertical timeline swim lanes when a process has clear phases, deadlines, or time bands that matter to execution. The vertical bands help readers see both role ownership and process timing in one view.
